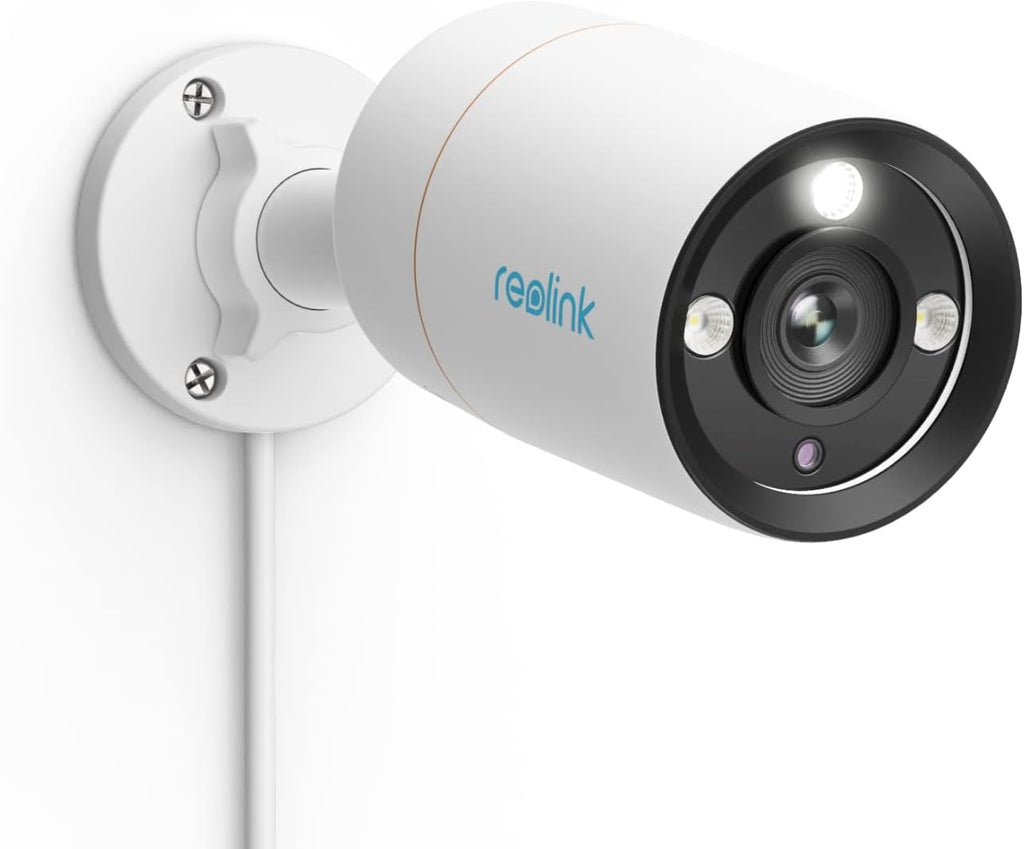

High 12MP Resolution With Spotlight
This Power Over Ethernet camera is ideal for adding to your Reolink NVR or use a PoE Switch and a MicroSD card.
Ultra Clarity with 12MP Ultra HD
With a F1.6 large aperture lens and 12MP (4512 x 2512 @ 20fps) ultra high definition, RLC-1212A allows you to enjoy flawless pictures and videos.
Smart Camera:
Person/Vehicle & Pet detection with alerts direct to your phone.
Stunning Colour Night Vision:
The powerful spotlight provide all the light you need to give clear, colour night vision.
Motion Zone:
Customise the motion zone to your liking, decide where objects' movements will be detected and where they will not.
Multiple Storage Options:
Save Videos to Micro SD Card, Reolink NVR or FTP server.
Time Lapse:
Great for construction sites or for fun.
Perfect for NZ Condition:
Rugged IP66 weatherproof rating.
Specifications
- Image Sensor: 1/2.49" CMOS Sensor
- Video Resolution: 4512 x 2512 (12 Megapixels) @ 20fps
- Lens: f=2.8mm, F=1.6, with IR cut
- Video Format:H.265
- Field of View: Horizontal: 118° Vertical: 66°
- IR-cut filter with auto-switching
- IR Night Vision: 30 meters (100 ft) (LED: 2pcs/28mil/850nm)
- Colour Night Vision: Spotlight 1pcs/4.3W/6500K/700 Lumens
- Audio: 2-way
- Power: PoE: IEEE 802.3af, 48V Active, DC Power: DC 12.0V ~ 1A, <12W
- Reset button
- Ethernet: One 10M/100Mbps RJ45
- Storage: Micro SD card slot (Max. 256GB)
- Audio: Built-in microphone
- Frame Rate: Mainstream: 2fps - 25fps (default: 25fps) Substream: 4fps - 15fps (default: 10fps)
- Code Rate: Mainstream: 1024Kbps -8192Kbps (default: 6144Kbps), Substream: 64Kbps - 512Kbps (default: 160Kbps)
- Browsers Supported: IE, Edge, Chrome, Firefox, Safari
- OS Supported: PC: Windows, Mac OS; Smartphone: iOS, Android
- Smart Alarm: Motion detection/Human detection/Vehicle detection
- Record Mode: Motion Record/Schedule Record (Default: Motion Record)
- Protocols & Standards: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
- Maximum User Access: 20 Users (1 admin account & 19 user accounts); Support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
- Work with: Google Assistant
- Operating temperature: -10°C~+55°C (14°F~131°F)
- Operating humidity: 10% ~ 90%
- Waterproof: IP66
- Size & Weight: Diameter 67mm x 187mm, 460g
