16 Channel NVR with 4TB HDD
If you want 24/7 video recording or if you have multiple IP cameras to manage, this Reolink NVR is your best choice.

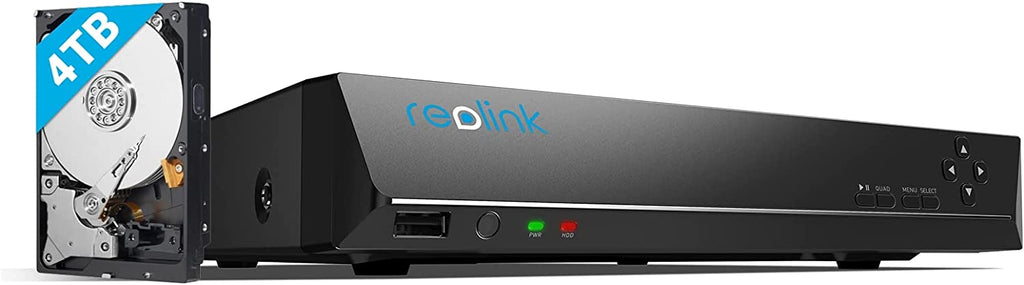

- Pre-installed 4TB HDD for 24/7 recording and monitoring.
- Support all cameras recording at the same time (up to 16 cameras).
- Up to 12TB (2 x 6TB HDD) storage capacity
Works with All Reolink IP Cameras
Reolink RLN8-410 16-channel PoE NVR can work perfectly with all Reolink IP cameras - including 12MP, 8MP, 5MP, and 4MP PoE/WIFI cameras - for 24/7 recording, motion detections, live views, playback and more features.
PoE - Easy Setup & Real Plug and Play
A real plug and play network video recorder! This RLN8-410 NVR features PoE (Power over Ethernet), with a single network cable connecting each of your IP cameras to the NVR for both power supply and video signal transmission. Easy wiring - the wiring process can't be simpler for DIY enthusiasts.
Local and Remote Access & Control
For local access and control: Connect the system to a monitor or an HD TV.
For remote access and control: Use free Reolink App on a mobile device, Reolink Client on a computer or a web browser (IE).
More Features
Use this NVR with Reolink PoE cameras and you can get a professional, reliable and DIY security camera system. You can play back any recorded video, back up local data, and do more.
Specifications
IP Video Input - PoE IP Camera x 16
Audio Input - Cameras with Built-in Mic
Video Output -
HDMI Output
4096x3072, 3840x2160, 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768
VGA Output
1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768
Audio output - 1CH RCA
Live View/Playback Resolution - 4096x3072, 3840x2160, 2560x1920, 2560x1440, 2048x1536, 2304x1296, 1080p, 720p
Video Format - H.265, H.264
Synchronous Playback - Up to 4 Channels
HDD - 2 x SATA interface (1 x Seagate 4TB HDD included)
Maximum Capacity - 12TB (Maximum 6TB HDD/Port)
External HDD - No
USB Interface - 2 x USB 2.0
Network Interface - RJ45,10M/100/1000Mbps self-adaptive Ethernet interface for LAN/WAN - 16, RJ-45 10/100Mbps self-adaptive PoE Ethernet interface for IP camera
Max. Power Consumption Per Port - 25W
Supported Standard - IEEE 802.3at
Network Protocol - HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
Browser Supported - Edge, Firefox, Chrome, Safari
OS Supported - PC: Windows, Mac OS; SmartPhone: iOS, Android
Max. User Access - 20 Users
Power Supply - DC 52V/2.88A
Power Consumption - <10W (Without HDD&PoE)
Working Temperature - -10~+55C (14°F~131°F); Humidity: 10%~90%

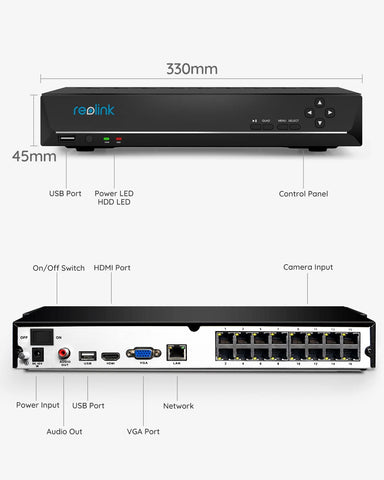

Dimensions (mm) - 330(W) x 45(H) x 285(D)
Weight (w/o HDD) - 2.4kg
