4 Camera Security Kit With 2TB HDD & 8 Channel NVR
(New Model Name Reolink NVS8-8MD4)
Flawless Video in 4K Ultra HD
Home security jumps from 5MP to 4K Ultra HD - 1.6X clearer than Super HD and 4X clearer than 1080p HD. Details you see around your home, or store, will be reproduced perfectly in live streaming and playback.
Add up to 8 cameras total, record 24/7 and access the live feed from wherever you happen to be.
Smart AI Detection
Advanced person/vehicle detection means you get alerts for the things that count.
Easy Setup with PoE Technology
This security camera system features PoE (Power over Ethernet) tech, with only one cable connecting each IP camera to the NVR for both power supply and video signal transmission. A real plug and play security system!
Keep Guard at Night
With 18 infrared LEDs in each camera this system captures videos clearly in the dark within the range of up to 100ft. It captures critical evidence even in low-light conditions, watching over your property from day to night.
24/7 Recording
With the 2TB HDD and the storage capacity of up to 12TB, the PoE video surveillance kit supports all cameras to record continuously at the same time. You will have all-day video without missing a beat.
Access Your Cameras, Anywhere and Anytime
Stay connected with your home or business on the go. See live streaming, replay key moments or check on motion alerts with just a few clicks on the Reolink App or Client. (Mac,PC, iOS, Android)
Motion Alerts
Informs you of movement via push notifications, emails, or buzzer alarm in the NVR. Choose between Person or Vehicle detection.
Multi-Cam Live Feed
See the live feed of multiple cameras on the same screen. Easier to have an overview of your property.
Playback
Videos can be stored in the NVR or FTP server. With the intuitive App/Client, you can easily find, replay or download footage you want.
Record Scheduling
You can set each camera respectively to record continuously, or when motion is detected, or on your time schedule.
Motion Zone
You can customize the motion zone to your liking, deciding where objects’ movements will be detected and where they will not.
What's in the box
- RLN8–410 NVR
- USB Mouse
- 4× D800 Turret/Dome Camera
- HDMI Cable
- 1m Network Cable
- 4× 18m Network Cable
- 4× Waterproof Lid
- 4× RJ45 Connector
- 24 Hour Video Surveillance Sticker
- Quick Start Guide, Mounting Template, Pack of Screws, Reset Needle
12 Month Warranty
Specs:

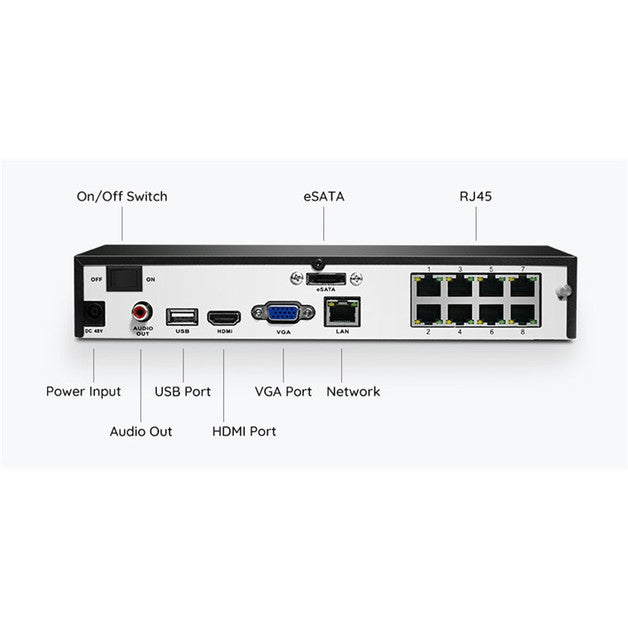

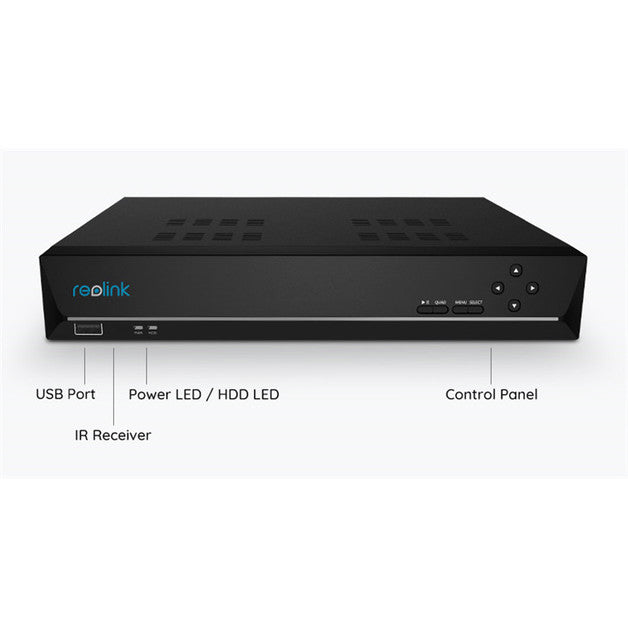

NVR Model: RLN8-410
- IP Video Input: PoE IP Camera x 8
- Audio Input: Cameras with Built-in Mic
- HDMI Output: 3840x2160, 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768
- VGA Output: 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768
- Audio output: 1CH RCA
- Live View/Playback Resolution: 3840x2160, 2560x1920, 2560x1440, 2048x1536, 2304x1296, 1080p, 720p
- Video Format: H.265/H.264
- Synchronous Playback: Up to 4 Channels
- SATA Devices: 1 x 2TB SATA HDD
- Maximum Capacity: 12TB (Maximum 6TB HDD/Port)
- External HDD: 1 x eSATA
- External USB Interface: 2 x USB 2.0
- External Network Interface: RJ45,10M/100M Ethernet, 8 Network Ports for IP camera, 1 Giga Network Port for LAN/WAN
- PoE Interface: 8 Independent 100 Mbps PoE Network Interfaces
- PoE Max. Power Consumption: 25W
- PoE Supported Standard: IEEE 802.3at
- Network Protocol: HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
- Browser Supported: IE, Firefox, Chrome
- OS Supported: PC: Windows, Mac OS; SmartPhone: iOS, Android
- Max. User Access: 20 Users
- Power Supply: DC 48V/2A
- Power Consumption: <10W (Without HDD&PoE)
- Working Environment: Temperature: -10c~+45c (14°F~113°F); Humidity: 10%~90%
- Dimensions (mm): 260(W) x 41(H) x 230(D)
- Weight (w/o HDD): 1.2 kg

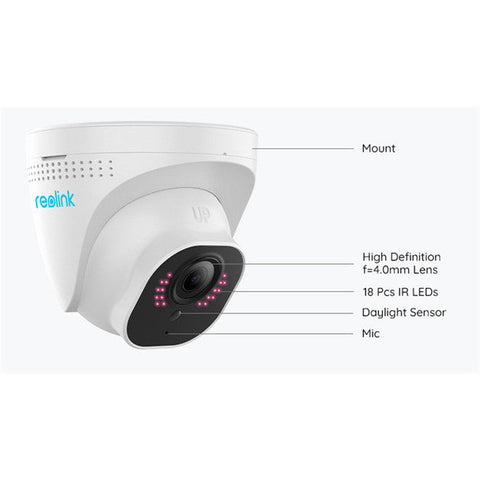

4K Ultra HD PoE Camera: Model RLC-800A
- Image Sensor: 1/2.49" CMOS sensor
- Video Resolution: Default: 3840X2160 (8.0 Megapixels) at 25 frames/sec
- Lens: f=4.0mm fixed; F=2.0, with IR-cut filter
- Video Format: H.265
- Field of View: Horizontal: 87° Vertical: 44°
- Day & Night: IR-cut filter with auto-switching
- Night Vision: 30 meters (100 ft) (LED: 18pcs/14mil/850nm)
- Audio: Audio recording
- PoE: IEEE 802.3af, 48V Active
- DC Power: DC 12.0V?1A, <12W
- Power: DC power port
- System: Reset button
- Ethernet: One 10M/100Mbps; RJ45
- Storage: MicroSD card slot (Max. 256GB)
- Audio: Built-in microphone
- Frame Rate: Mainstream: 2fps - 25fps (default: 25fps) Substream: 4fps - 15fps (default: 10fps)
- Code Rate: Mainstream: 1024Kbps - 8192Kbps (default: 6144Kbps) Substream: 64Kbps - 512Kbps (default: 256Kbps)
- Browser Supported: IE, Edge, Chrome, Firefox, Safari
- OS Supported: PC: Windows, Mac OS; Smartphone: iOS, Android
- Smart Alarm: Motion detection/Person detection/Vehicle detection
- Record Mode: Motion-triggered recording (default); scheduled recording
- Protocols & Standards: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
- Maximum User Access: 20 users (1 admin account & 19 user accounts); support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
- Smart Home: Google Assistant
- Waterproof: IP66
