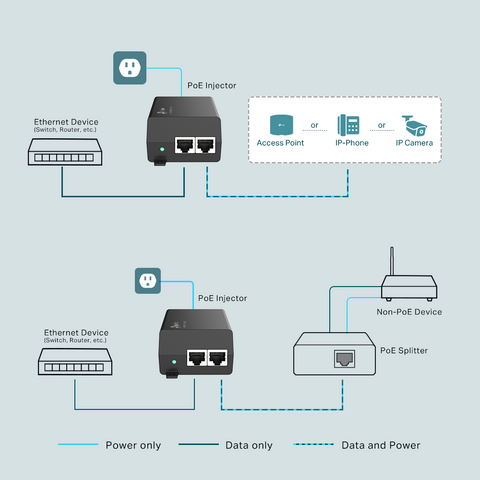

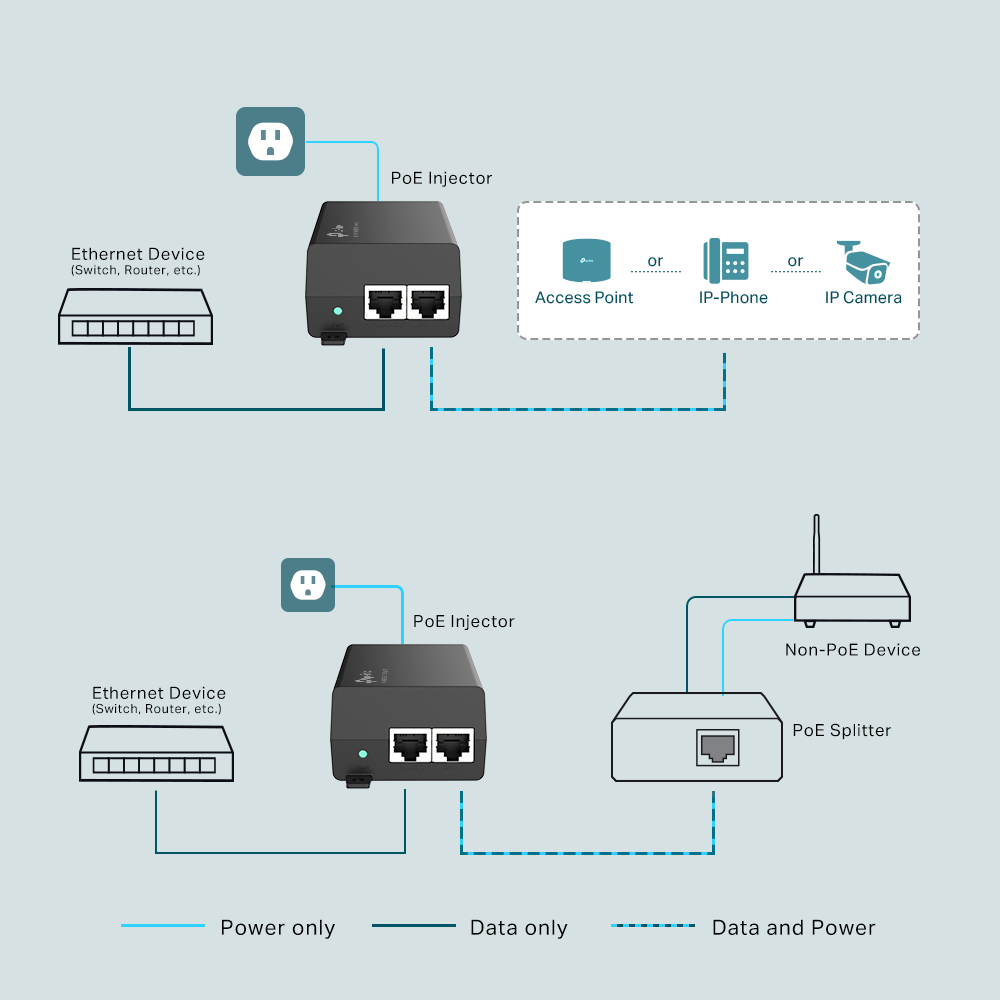

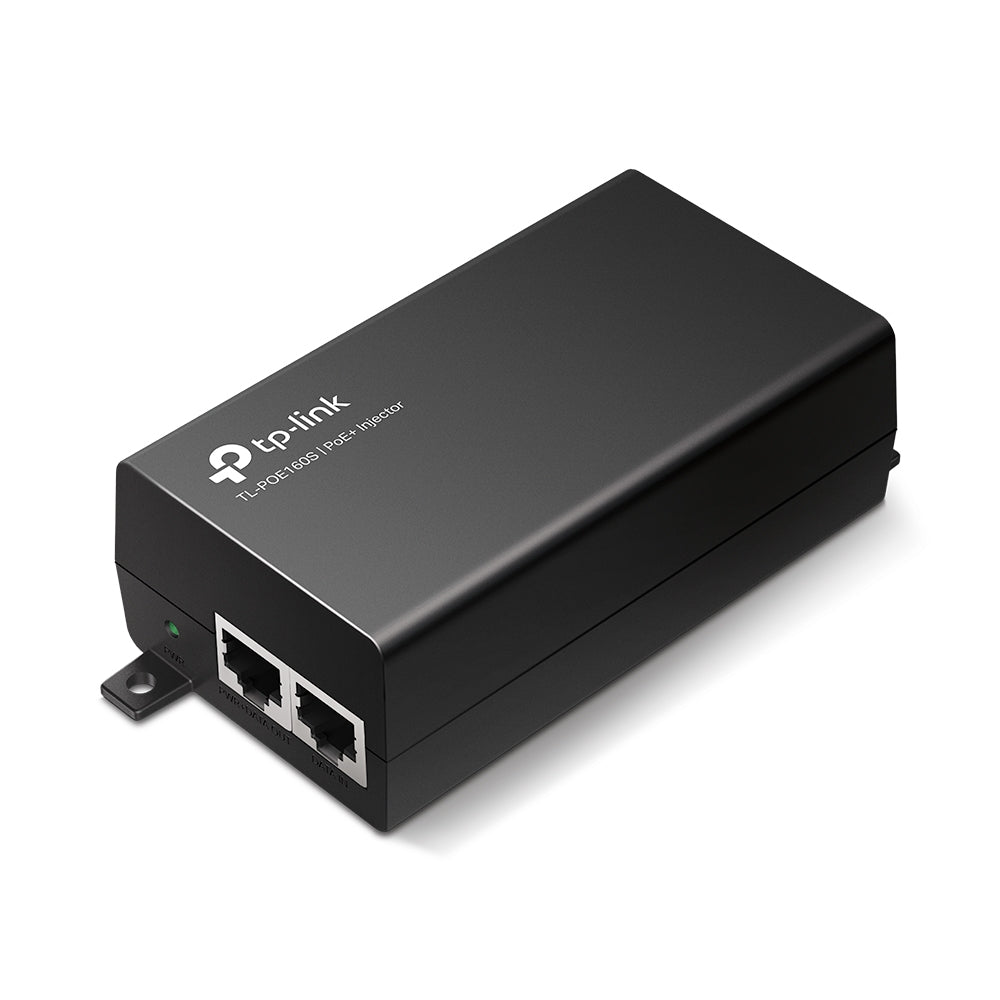

PoE+ Injector to attach a PoE camera to your router
Easily setup your PoE camera to a non PoE device (router).
- Transmits data and power simultaneously via an Ethernet cable
- Automatically determines and supplies the exact power to meet the device's need
- Plug & Play installation, requires no configuration
- Wall-mounting and desktop design accommodates most installation scenarios
- Integrated power supply
- 2 Gigabit ports ensure faster transmission
- Complies with IEEE802.3af/at standards, supplies up to 30W
Auto Power Detection
With auto detect technology, TL-PoE160S determines and delivers the exact power supply to your devices with up to 30W power output and backwards compatibility for 802.3af PoE (15.4W) devices.
Long Range Transmission
Deliver power up to 100 meters, perfect for IP cameras or access point deployment in large areas.

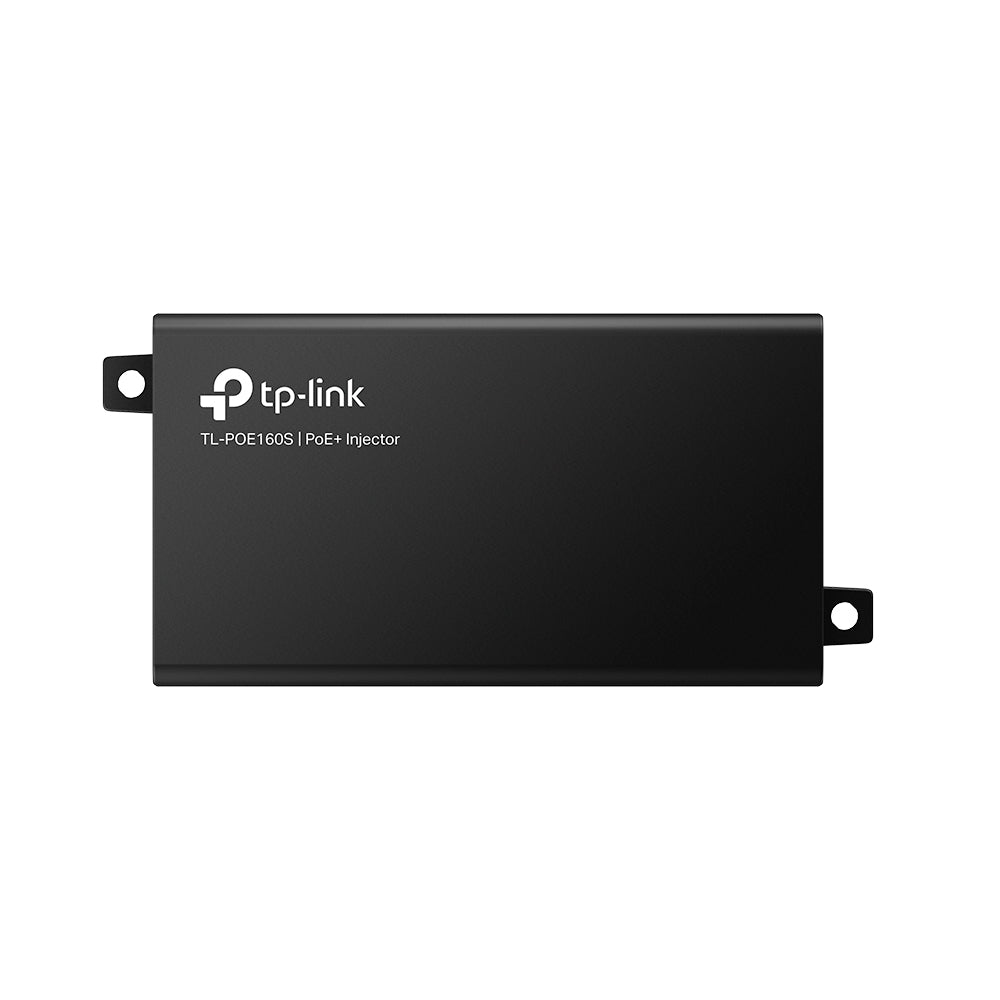

Flexible Mounting Options
Wall or desktop mounting options.
Specifications:
Standards and Protocols: IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at
Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m), EIA/TIA-568 100O STP (maximum 100 m), 100BASE-TX: UTP category 5, 5e cable (maximum 100 m), EIA/TIA-568 100O STP (maximum 100 m), 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)

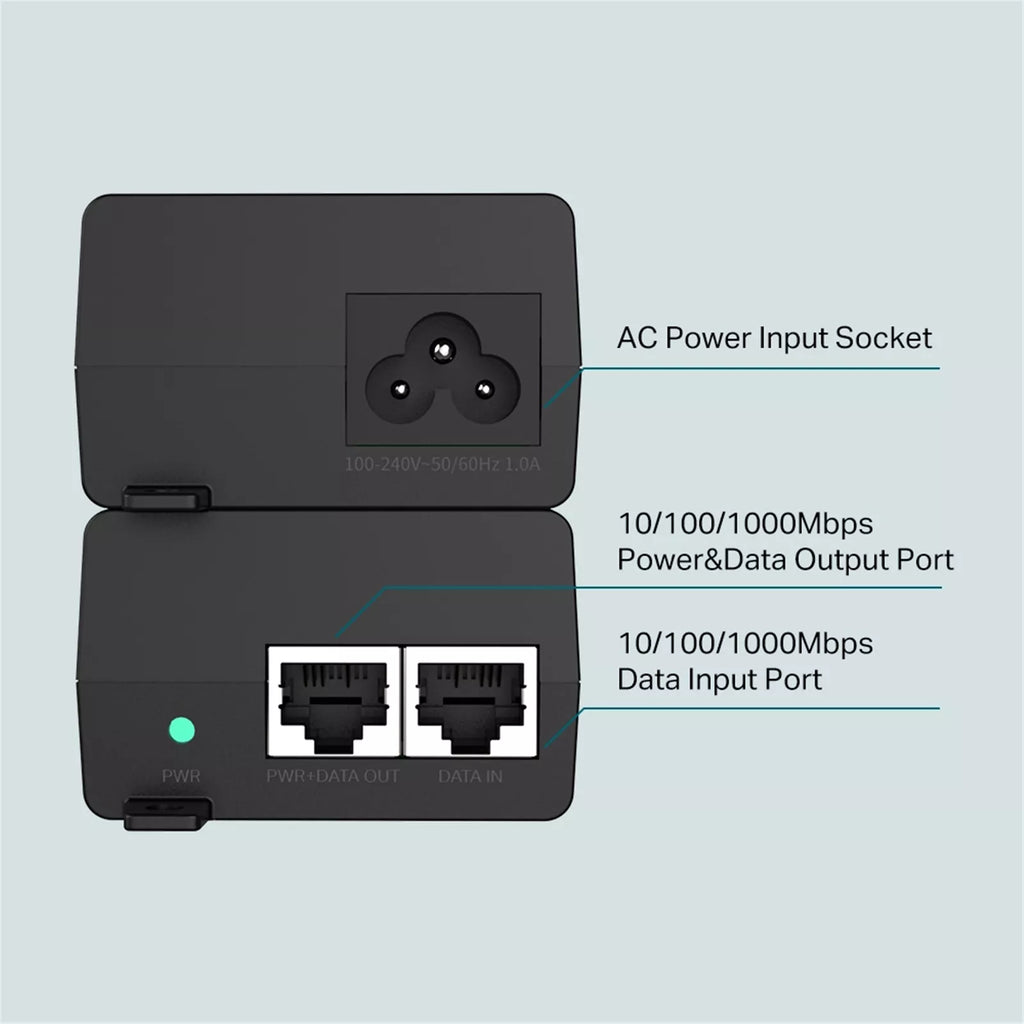

Ports: 1 x 10/100/1000Mbps RJ45 data-in port, 1 x 10/100/1000Mbps RJ45 power+data-out port, 1 x AC socket
Power Consumption: Input: 100-240 V, 50/60 Hz, Output: Auto-determine the necessary power requirements (max. 30 W)
Dimensions: 125*59.4*36.8 mm
Max Power Consumption: 4.52 W (220V/50Hz with no PD connected), 75.16 W (220V/50Hz with 65 W PD connected)
